The unit weight of any substance is defined as the ratio of mass or weight per unit volume. It is generally measured in pound/ft, gm/cm or, kg/cm or kg/m, etc.

The unit weight of materials is different depending on their composition & ingredient materials properties. It gives an idea about the heaviness or lightness of materials.

What Is Unit Weight of Steel | Weight of Steel Bar Formula | Steel Unit Weight | How to Calculate Steel Bar Unit Weight

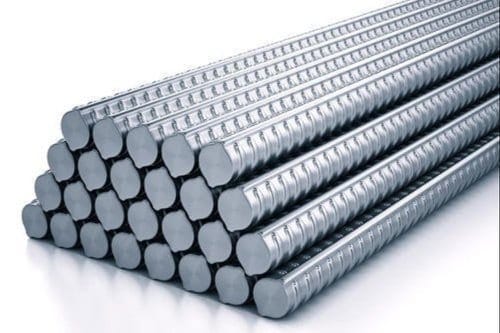

Unit Weight of Steel

As we know, steel is one of the most used construction materials. Finding out the unit weight of the steel bar before its application is equally important.

The steel bars are majorly used as reinforcement to strengthen the tensile property of concrete structures.

The density of steel is around 7850 kg/m3 or 7.85 g/cm3 or 490 lbs/ft3 or 13231 lbs/yd3.

The steel weight is generally measured in Kg, Ton, and pound.

Read More: Density of Cement | Density of Sand | Sand Density | Cement Density | Density of Aggregate | Density of concrete

What Is Unit Weight of Steel | Weight of Steel Bar Formula | Steel Unit Weight | How to Calculate Steel Bar Unit Weight

Different Diameters of Steel Bars Used In Construction

There are various steel diameters used in construction are 8mm, 10 mm, 12 mm, 16 mm, 20 mm, 25 mm, 32 mm, and 40 mm.

The steel diameter used for normal residential, commercial, and office building construction is 8 mm to 20 mm.

The steel diameter of 25 mm to 40 mm is used for heavy construction like bridges, dams, and retaining walls.

The formula used to calculate the unit weight of steel bars is D²/162. Where, D = Dia. Of steel bars, 162 is a constant value.

Derivation of D2/162 Formula

Consider a steel bar with a diameter of D and a length is L.

Weight of Steel Bar (W) = Unit Weight of Steel Bar (γ) x Volume (V)

W = γ x V

W = πD²/4 x γ (V = πD²/4)

As known that Steel unit weight is about 7850 kg/m3 (γ)

W = πD²/4 x 7850

Here, D is steel diameter in mm, and the density of steel is in kg/m3. To make a constant value in the same unit we will convert Dia. Of steel in mm to m.

D² mm / 100⁰²

W = π/4 x D²/100⁰² x 7850

W = D²/162.28 kg/m

W = D²/162 kg/m

Read More: 10 Different Types of Steel | Carbon Steel & Alloyed Steel

The unit weight of the steel bar is calculated by dividing the weight of the steel bar by its volume. For calculating the unit weight of steel bars consider the unit length of 1 meter for all steel diameter steel.

1. Unit Weight of 8 mm steel bar

Dia of Steel = 8 mm, Length of Steel bar = 1 m

Unit weight of 8 mm steel bar

= D²/162

= ⁸² /162

= 8x8/162

=64/162

= 0.395 kg/m³

The unit weight of 8 mm dia. Steel bar is 0.395 kg/m³

8mm steel weight per meter is 0.395 kg

8mm steel bar unit weight in feet = 0.12 kg/ft

For example,

8mm steel rod weight 40 ft

= 0.12x40

= 4.8 kg

So, an 8mm steel rod weight of 40 ft is 4.8 kg

2. Unit Weight of 10 mm Dia. Steel Bar (10mm steel bar weight)

The following is the method to calculate the 10mm steel bar weight

Dia of Steel = 10 mm, Length of Steel bar = 1 m

Unit weight of 10 mm steel bar

= D²/162

= 1⁰² /162

= 10x10/162

= 100/162

= 0.617 kg/m³

The unit weight of 8 mm dia. Steel bar is 0.617 kg/m³.

10mm steel weight per meter is 0.617 kg

So, 10mm steel bar weight is 0.617 kg/m³.

3. Unit Weight of 12 mm Dia. Steel Bar

Dia of Steel = 12 mm, Length of Steel bar = 1 m

Unit weight of 12 mm steel bar

= D²/162

= 1²² /162

= 12x12/162

= 144/162

= 0.890 kg/m³

The unit weight of 8 mm dia. Steel bar is 0.890 kg/m³.

12mm steel weight per meter is 0.890 kg

4. Unit Weight of 16 mm Dia. Steel Bar

Dia of Steel = 16 mm, Length of Steel bar = 1 m

Unit weight of 16 mm steel bar

= D²/162

= 1⁶² /162

= 16x16/162

= 256/162

= 1.58 kg/m³

The unit weight of 8 mm dia. The steel bar is 1.58 kg/m³.

16mm steel weight per meter is 1.58 kg

5. Unit Weight of 20 mm Dia. Steel Bar

Dia of Steel = 20 mm, Length of Steel bar = 1 m

Unit weight of 20 mm steel bar

= D²/162

= 2⁰² /162

= 20x20/162

=400/162

= 2.46 kg/m³

The unit weight of 20 mm dia. The steel bar is 2.46 kg/m³.

20mm steel weight per meter is 2.46 kg

6. Unit Weight of 25 mm Dia. Steel Bar

Dia of Steel = 25 mm, Length of Steel bar = 1 m

Unit weight of 8 mm steel bar

= D²/162

= 2⁵² /162

= 25x25/162

=625/162

= 3.85 kg/m³

The unit weight of 25 mm dia. The steel bar is 3.85 kg/m³.

25mm steel weight per meter is 3.85 kg

7. Unit Weight of 32 mm Dia. Steel Bar

Dia of Steel = 32 mm, Length of Steel bar = 1 m

Unit weight of 32 mm steel bar

= D²/162

= 3²² /162

= 32x32/162

=1024/162

= 6.32 kg/m³

The unit weight of 32 mm dia. The steel bar is 6.32 kg/m³.

32mm steel weight per meter is 6.32 kg

8. Unit Weight of 40 mm Dia. Steel Bar

Dia of Steel = 40 mm, Length of Steel bar = 1 m

Unit weight of 40 mm steel bar

= D²/162

= 4⁰² /162

= 40x40/162

= 1600/162

= 9.87 kg/m³

The unit weight of 8 mm dia. The steel bar is 9.87 kg/m³

40mm steel weight per meter is 9.87 kg

Read More: 10 Best Steel for House Construction | Best Steel Brand for House Construction In India | Best TMT bar In India | Best Steel In India

Dia of Steel BarLengthUnit Weight 8 mm1 m0.395 kg/m10 mm1 m 0.610 kg/m12 mm1 m 0.89 kg/m16 mm1 m 1.58 kg/m20 mm1 m 2.46 kg/m25 mm1 m 3.87 kg/m32 mm1 m 6.32 kg/m40 mm1 m 9.87 kg/mUnit Weight of Steel Bars

What Is Unit Weight of Steel | Weight of Steel Bar Formula | Steel Unit Weight | How to Calculate Steel Bar Unit Weight

Unit Weight of Steel Bars in Kg/m

The following are the steps to be followed to find out the quantity of steel is available on the construction site or steel is loaded in the truck at the time of delivery.

Step: 1 Recognize the Different Dia. of Steel Available in Stock

What Is Unit Weight of Steel | Weight of Steel Bar Formula | Steel Unit Weight | How to Calculate Steel Bar Unit Weight

Recognize the Different Dia. of Steel Available in Stock

Firstly, we have to recognize the different dia. Steel bars are available on site.

Suppose, there are 8 mm, 10 mm, 16 mm, and 20 mm steel bars are available on site.

Step: 2 Count the Number of Steel Bars of Each dia. Of Steel

Now, count the numbers of steel bars in each dia. Steel bars are available on site.

What Is Unit Weight of Steel | Weight of Steel Bar Formula | Steel Unit Weight | How to Calculate Steel Bar Unit Weight

Count numbers of steel bars in each dia of steel

For example,

8 mm = 80 nos.

10 mm = 120 nos.

12 mm = 50 nos.

16 mm = 60 nos.

20 mm = 30 nos.

Step: 3 Find out the Unit Weight of Steel Bars

Now calculate the unit weight of steel bars by taking a 1 m length sample of each dia of steel and weighing it.

This weight of 1 m length sample will directly give you the unit weight of that steel bar dia in kg/m.

The unit weight of steel bars is as follows,

8 mm = 0.395 kg/m

10 mm = 0.620 kg/m

12 mm = 0.89 kg/m

16 mm = 1.58 kg/m

20 mm = 2.46 kg/m

Step: 4 Calculate the Total Weight of Each dia Steel Bars

From unit weight and numbers of steel bars, calculate the total weight of each dia steel bar available on site.

For Example,

1. 8 mm Dia steel Nos = 80, Unit Weight of 8 mm Dia Steel = 0.395 kg/m

Total Weight of 8 mm dia steel = Nos x Unit Wt x Length of Steel (12 m)

= 80 x 0.395 x 12

= 379.2 kg

2. 10 mm Dia steel Nos = 120, Unit Weight of 10 mm Dia Steel = 0.620 kg/m

Total Weight of 8 mm dia steel = Nos x Unit Wt x Length of Steel (12 m)

= 80x0.620x12

= 892.8 kg

3. 12 mm Dia steel Nos = 50, Unit Weight of 12 mm Dia Steel = 0.890 kg/m

Total Weight of 12 mm dia steel = Nos x Unit Wt x Length of Steel (12 m)

= 80x0.89x12

= 534 kg

4. 16 mm Dia steel Nos = 60, Unit Weight of 16 mm Dia Steel = 1.58 kg/m

Total Weight of 8 mm dia steel = Nos x Unit Wt x Length of Steel (12 m)

= 80x1.58x12

= 1137.6 kg

20 mm Dia steel Nos = 30, Unit Weight of 20 mm Dia Steel = 2.46 kg/m

Total Weight of 20 mm dia steel = Nos x Unit Wt x Length of Steel (12 m)

= 80x2.46x12

= 885.2 kg

What Is Unit Weight of Steel | Weight of Steel Bar Formula | Steel Unit Weight | How to Calculate Steel Bar Unit Weight

Find out the Unit Weight of Steel Bars

Unit Weight of SteelThe unit weight of steel is around 7850 kg/m3 or 7.85 g/cm3 or 490 lbs/ft3 or 13231 lbs/yd3. The steel bars are majorly used as reinforcement to strengthen the tensile property of concrete structures. The steel weight is generally measured in Kg, Ton, and pound. Weight of Steel Bars FormulaThe formula used to calculate the unit weight of steel bars is D²/162. Where, D = Dia. Of steel bars, 162 is a constant value. Weight Formula for SteelThe formula used to calculate the unit weight of steel bars is D²/162. Where, D = Dia. Of steel bars, 162 is a constant value. Unit Weights of Steel The unit weight of steel is around 7850 kg/m3 or 7.85 g/cm3 or 490 lbs/ft3 or 13231 lbs/yd3. The steel bars are majorly used as reinforcement to strengthen the tensile property of concrete structures. The steel weight is generally measured in Kg, Ton, and pound.
